C12
Single microphone system
Each system includes:
- C12 Microphone
- M 910 Power Supply
- M 810 Sommer Tube Microphone Cable – 10m
- M 751 Rycote Shock Mount
- FC10 Locking Flight Case
- WB10 Wooden Microphone Box
Revered for its smooth and airy frequency response, if there were ever a microphone that was the epitome of classic, hi-fidelity sound, it would be the C12.
$9,995.00 – $19,990.00
Revered for its smooth and airy frequency response, if there were ever a microphone that was the epitome of classic, hi-fidelity sound, it would be the C12.
$9,995.00 – $19,990.00
Revered for its smooth and airy frequency response, if there were ever a microphone that was the epitome of classic, hi-fidelity sound, it would be the C12. While it is a fantastic choice for all types of instruments, the C12 lends itself especially well to drum overheads, acoustic guitar, and vocals. Its silky top end provides plenty of air without sounding harsh or artificial. Its midrange speaks clearly and articulately, capturing the source with a natural presence. Its low end is tight and focused, perfectly balanced with the rest of the frequency range. The TELEFUNKEN C12 builds upon the original design with the implementation of cathode self-biasing operation, a configuration which is quieter and more consistent than the original fixed-bias configuration.
Type: Vacuum Tube Condenser

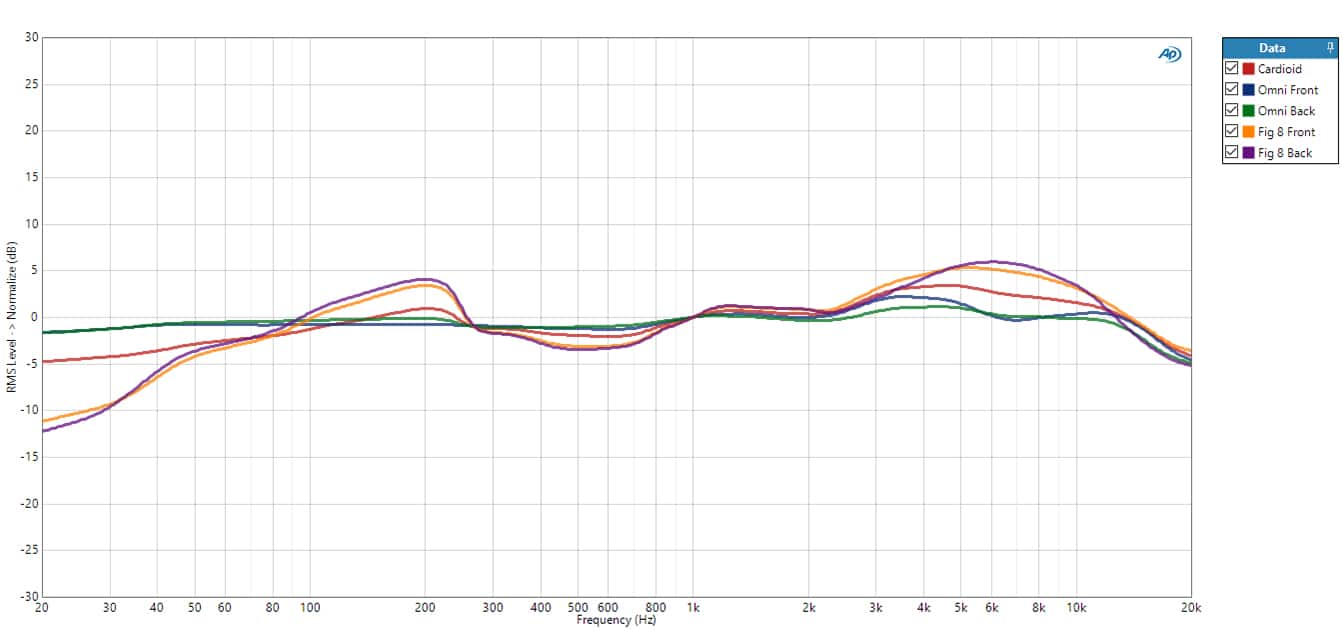

Polar Pattern: 9-Pattern Variable including Cardioid, Omnidirectional, Figure-8

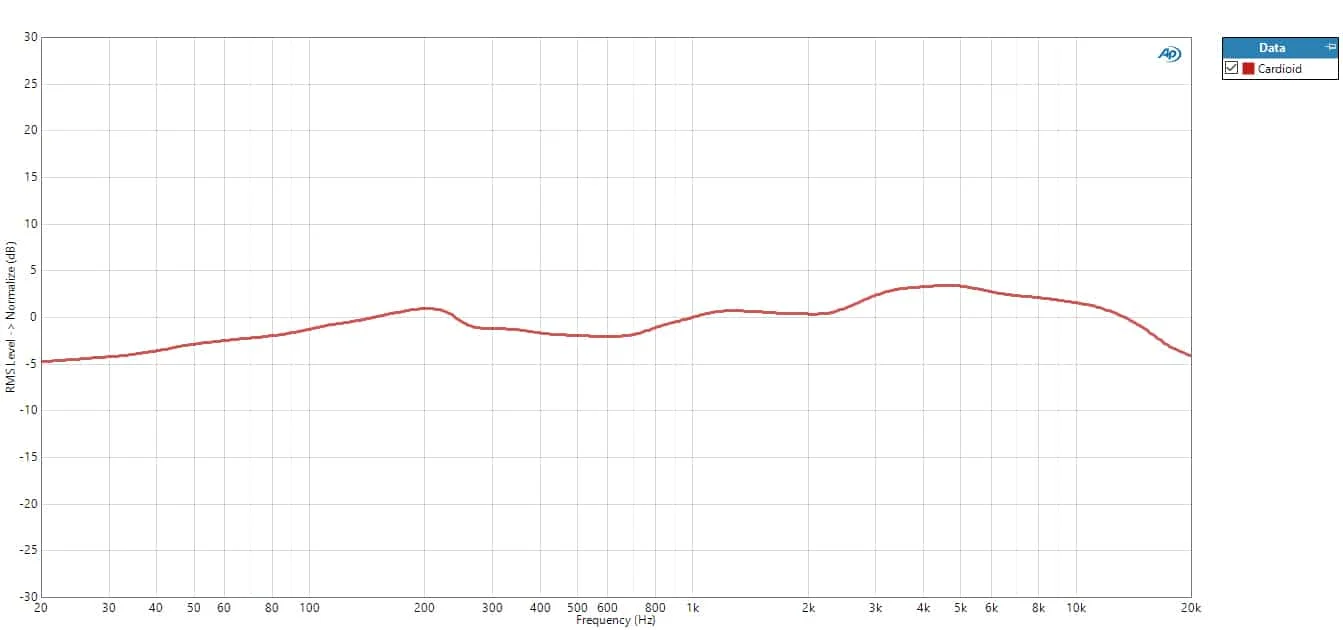

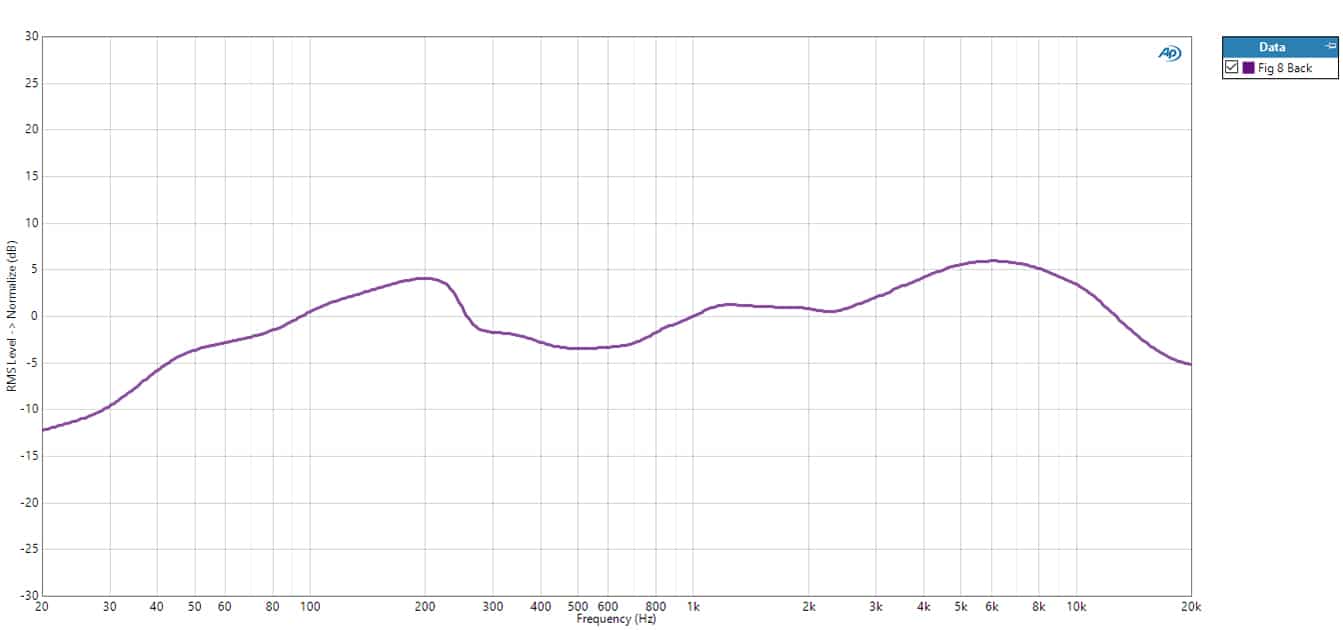

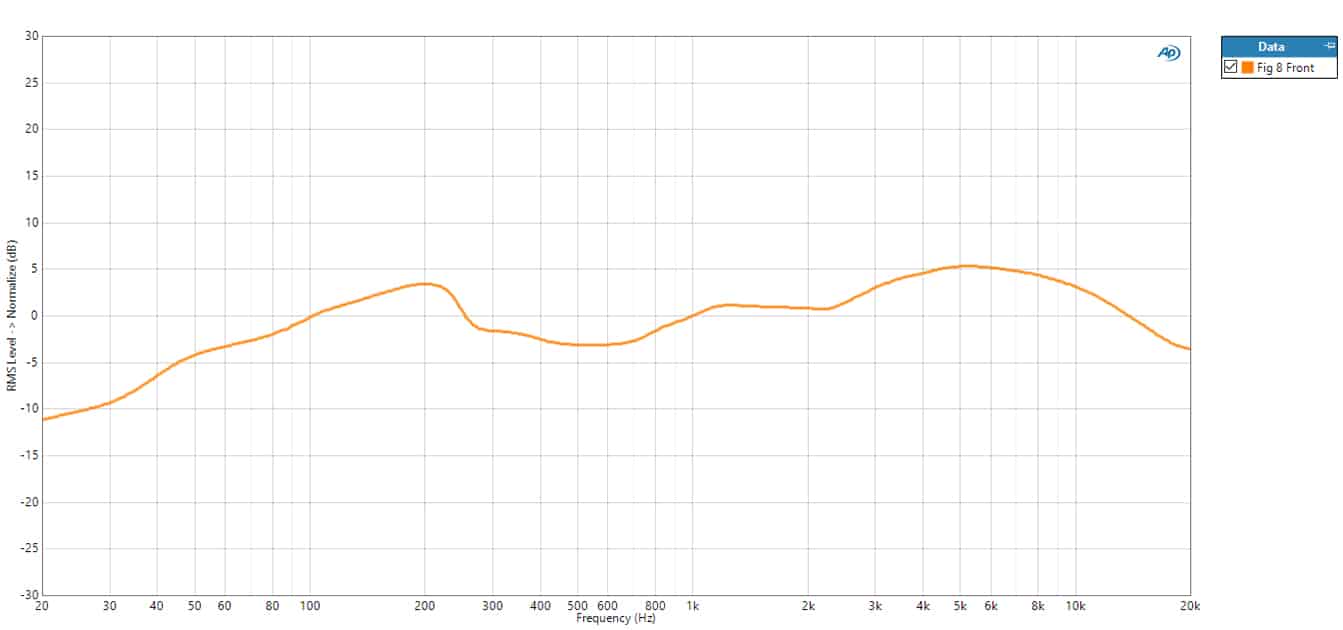

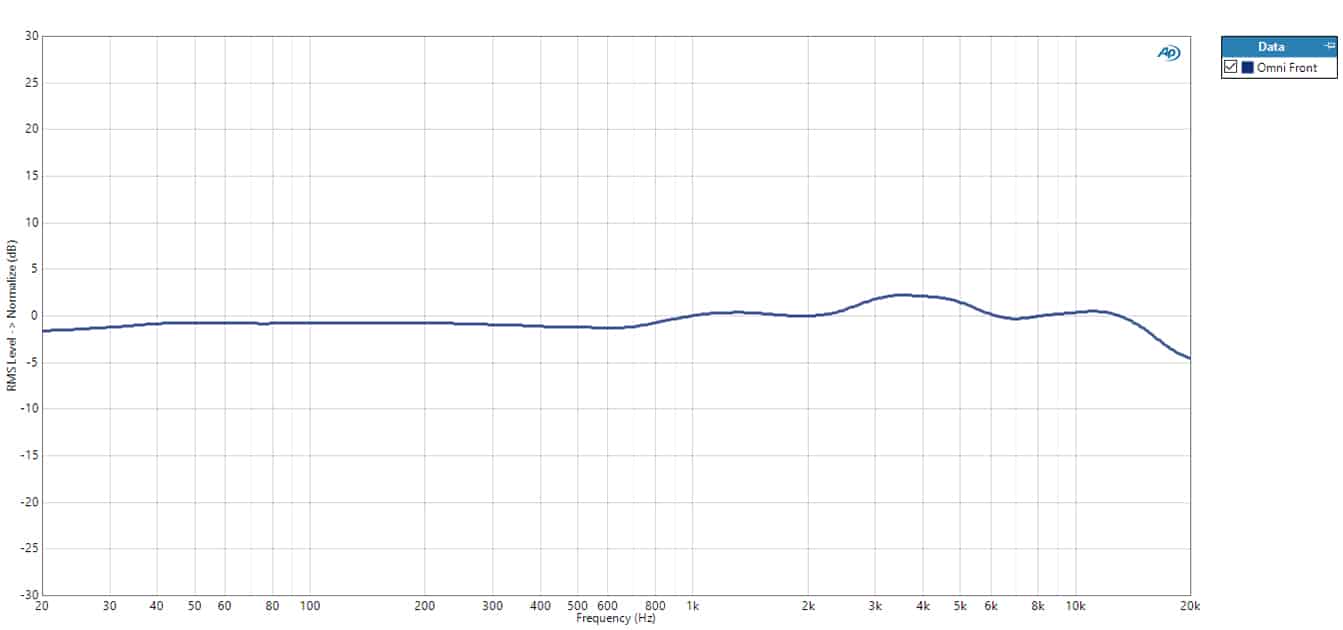

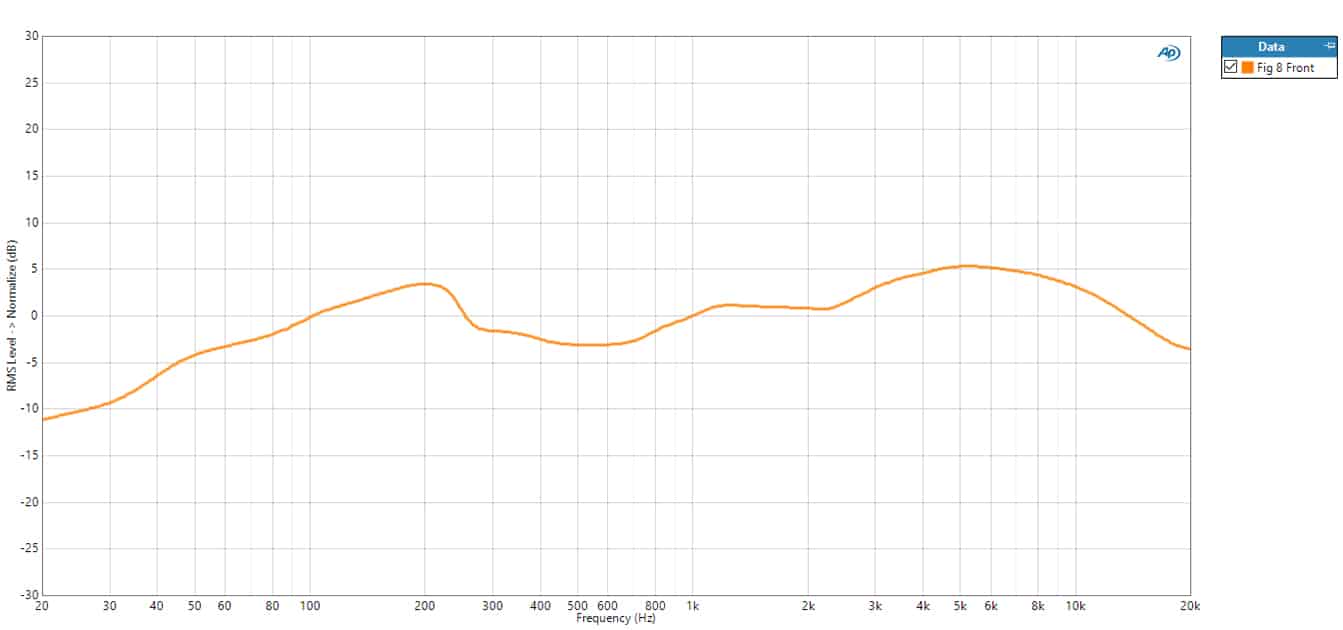

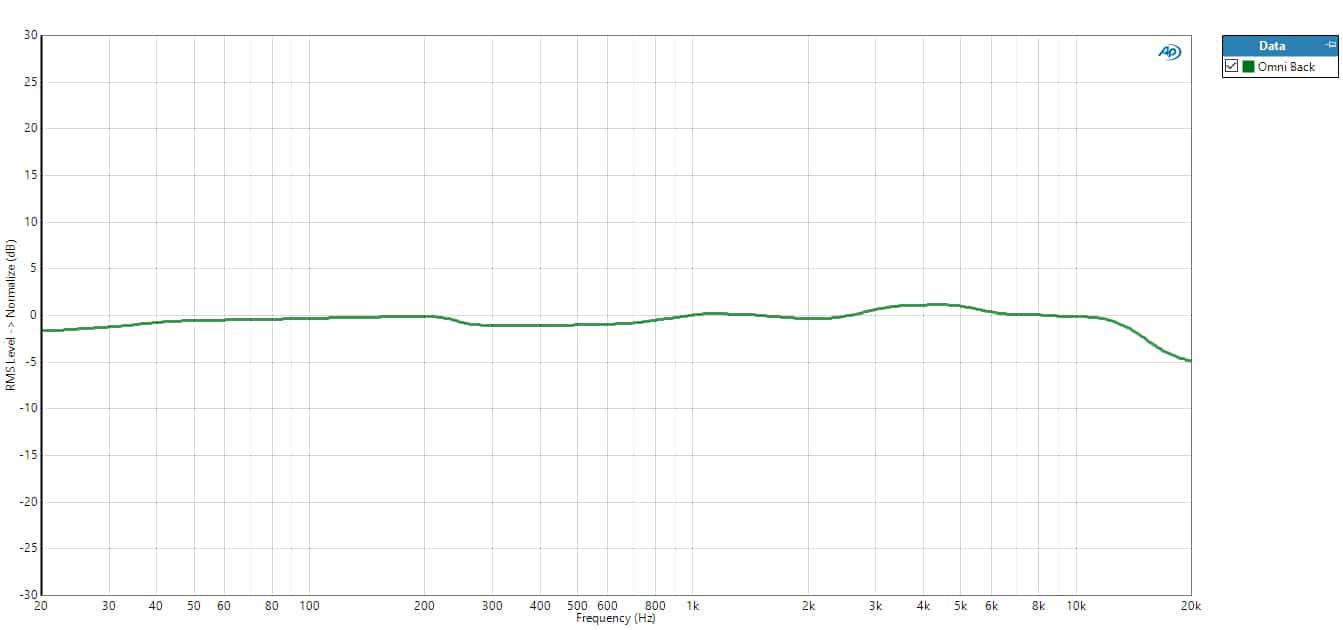

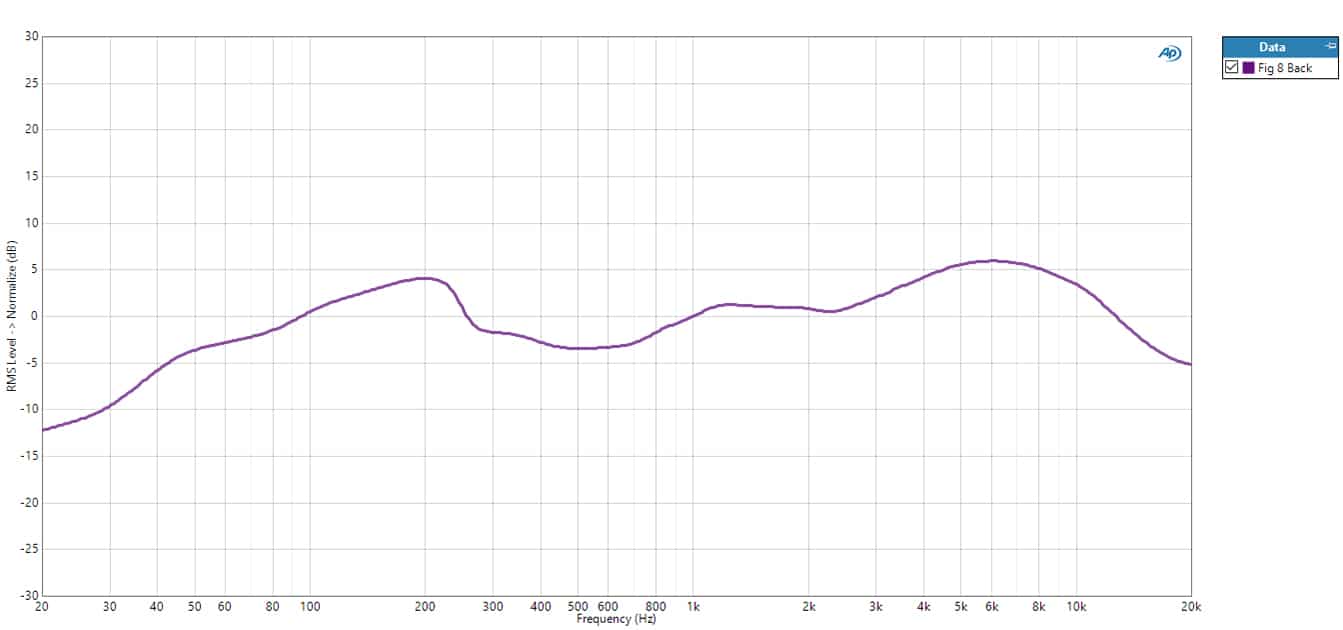

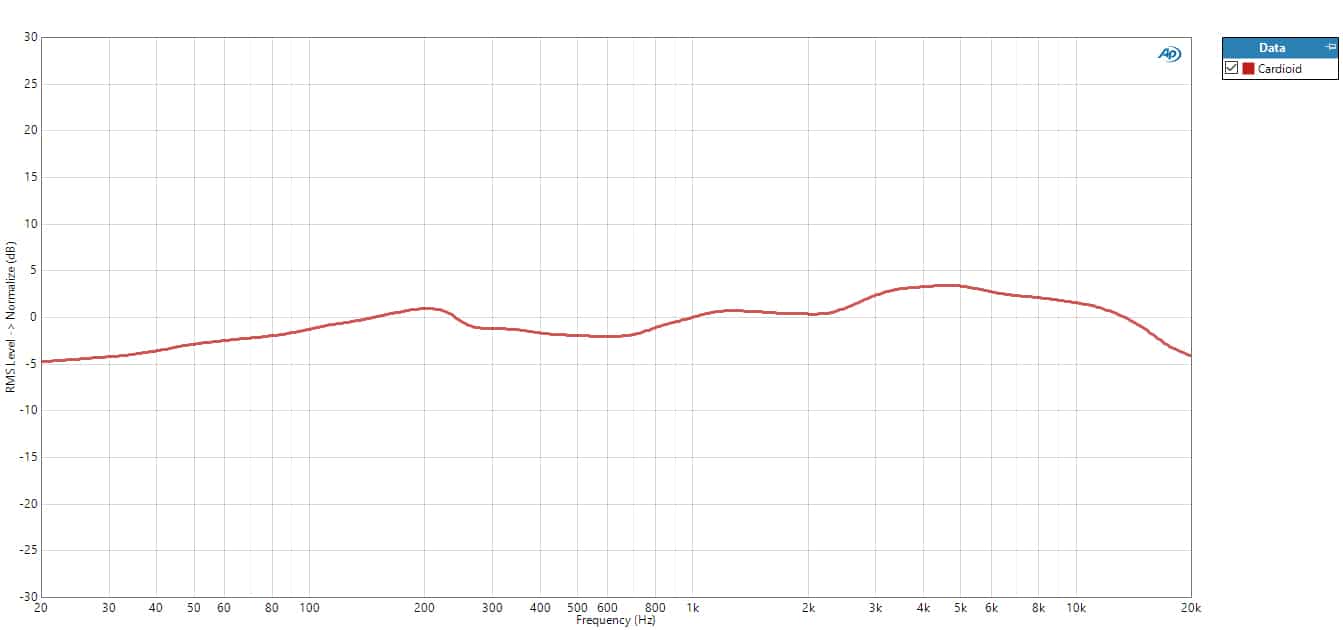

Frequency Range: 20 Hz – 20 kHz, ±3 dB
Power Source: External Power Supply
Capsule: TELEFUNKEN Elektroakustik CK12 – Edge Terminated Large Diaphragm
Tube: TELEFUNKEN Elektroakustik 6072A
Transformer: Haufe T14/1
Sensitivity: 10 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier): < 0.25%
Output Impedance: 200 Ω
Maximum SPL (for 1% THD): 130 dB
S/N Ratio: 85 dBA
Self Noise (Amplifier): 9 dBA
Dimensions: 250 mm L x 42.5 mm Dia
Weight: 567 g
Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Wooden Box, Flight Case
